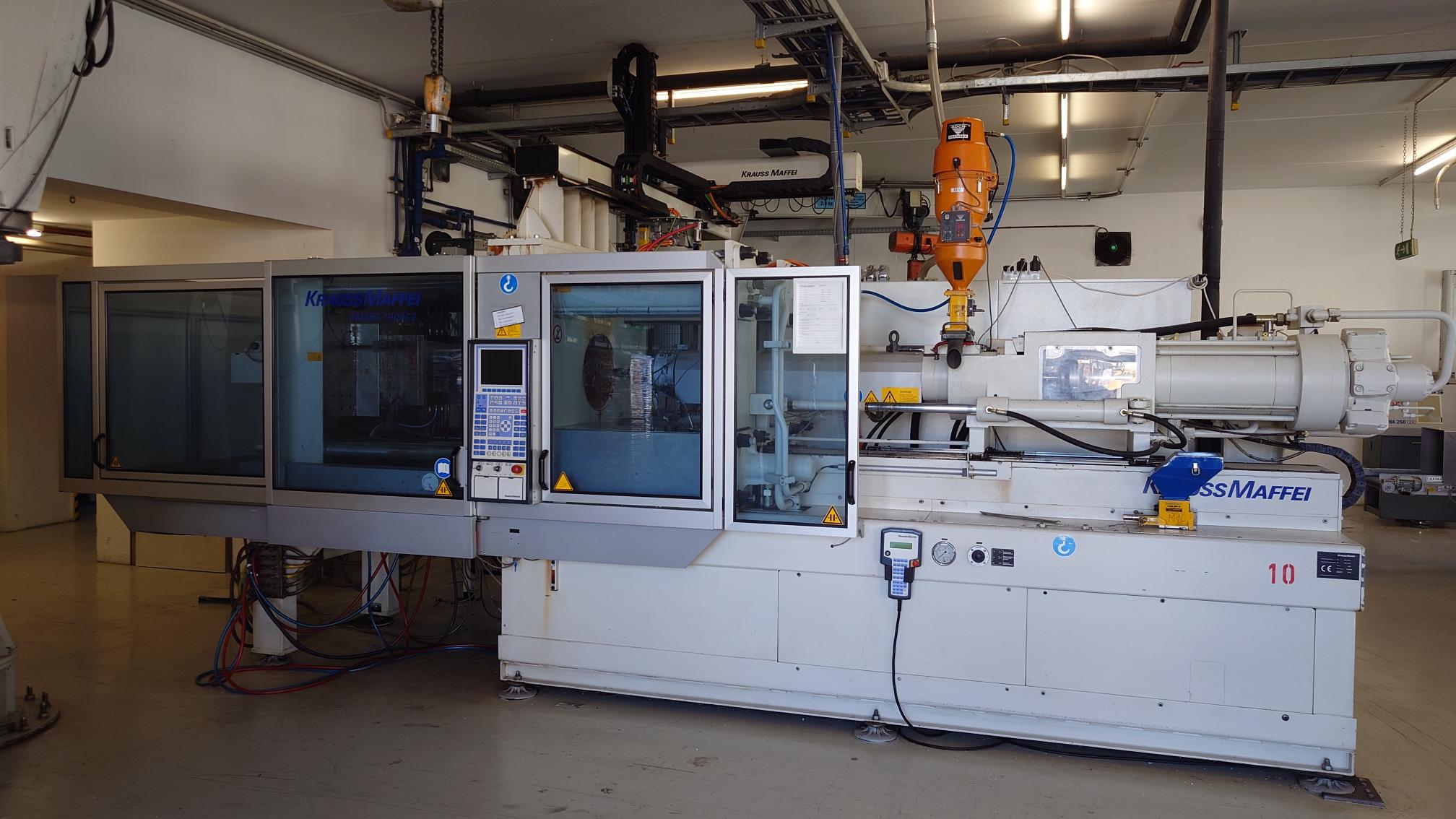

Krauss Maffei M350 /1900 C2

Injection Molding Machine
Manufacturer: Krauss Maffei
Type: KM350 /1900 C2
Year of Manufacture: 2005

Clamping Force: 3.500 kN

Mold Opening Force: 220 kN
Moving Platen Travel Force:
Open: 105 kN
Close: 95 kN
Plate Size (H x V): 1.060 x .,095 mm
Clear Opening (H x V): 710 x 710 mm
Mold Opening Stroke: 920 mm
Minimum Mold Installation Height: 380 mm
Capping Width: 1.300 mm
Ejector Stroke: 250 mm
Ejector Force (forward/reverse): 95 / 48 kN

Pump Motor: 75 kW
Installed Heating Capacity: 30 kW
Cylinder Heating Control Zones: 6
Dry Run Count: 1.550 1/h
Oil capacity: 720 liters

Dimensions and weights:
Net weight with control cabinet: approx. 16.0 tons
L/W/H: 6.510 x 2.040 x 2.380 mm
Maximum tool weight: 4.780 kg


Injection unit:
Working capacity: 1900
Screw diameter: 70 mm
Injection pressure: 1.778 bar
Stroke volume: 1.047 cm³
Shot weight for PS: 953 g
Injection flow: 527 cm³/s
Screw speed standard / option: 285/349 rpm
Screw speed standard or stage 1: 95 hp
Screw speed option or stage 2: 117 hp
Nozzle clamping force: 82 kN
Fully hydraulic 2-pallet clamping system
PV control for injection unit

MC4 32-bit microprocessor control
Integrated control panel with
TFT color screen and
3.5-inch floppy disk drive for data backup

Plasticizing:
1 complete Thermoplastic plasticizing in wear-resistant design
Screw diameter 70 mm with
non-return valve and open nozzle
Nozzle radius: 15.00 mm
Nozzle bore: 6.00 mm

Reference No.: P2119
