Zyklomat ZKR 14/350

Coolant Cleaning System
Manufacturer: Zyklomat
Type: ZKR 14/350
Year of Manufacture: 2016

For cleaning grinding emulsion
Supply rate: max. approx. 250 l/min
at approx. 3.5 bar water pressure

Transfer to the filtration system is to be provided by the customer,
free of air and foam.
Max. temperature: 50°C

Cleaning capacity: 350 L/min.
Recirculation from clean tank to dirty tank: 100–350 L/min.
Machine supply (max.): 250 L/min.
Filtration principle: ZYKLOMAT high-performance hydrocyclone Z1B-9/3
Separation cut-off size: approx. 5 µm

Medium: 3–6% emulsion
Operating temperature: Ambient temperature
Solid particles: approx. 5.14 m³
Max. operating volume: approx. 4.58 m³
Min. operating volume: approx. 3.60 m³

Process sequence:
Fully automatic full-flow filtration

Sludge discharge:
Fully automatic; sludge has a spadeable consistency

Contaminated fluid is supplied via customer-provided lifting stations.
Chips and fine sludge (grinding swarf, scale, corundum) generated
during the grinding process are discharged via a scraper conveyor.
The sludge is pre-dried along the upper section of the scraper conveyor.

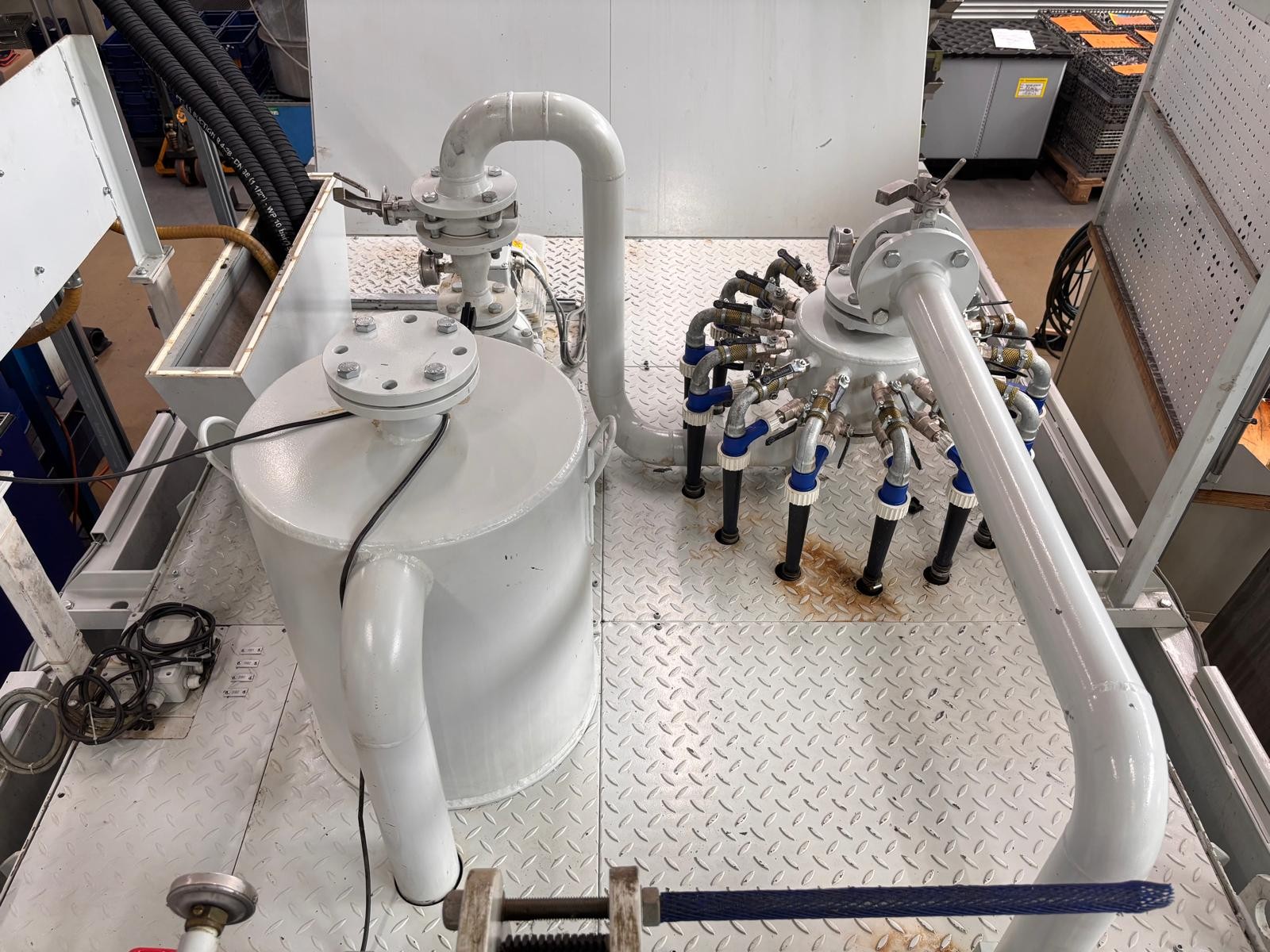

Filtration is performed using ZYKLOMAT high-performance hydrocyclones.
The system operates fully automatically.

Maintenance: Annual maintenance

Availability: October 2026

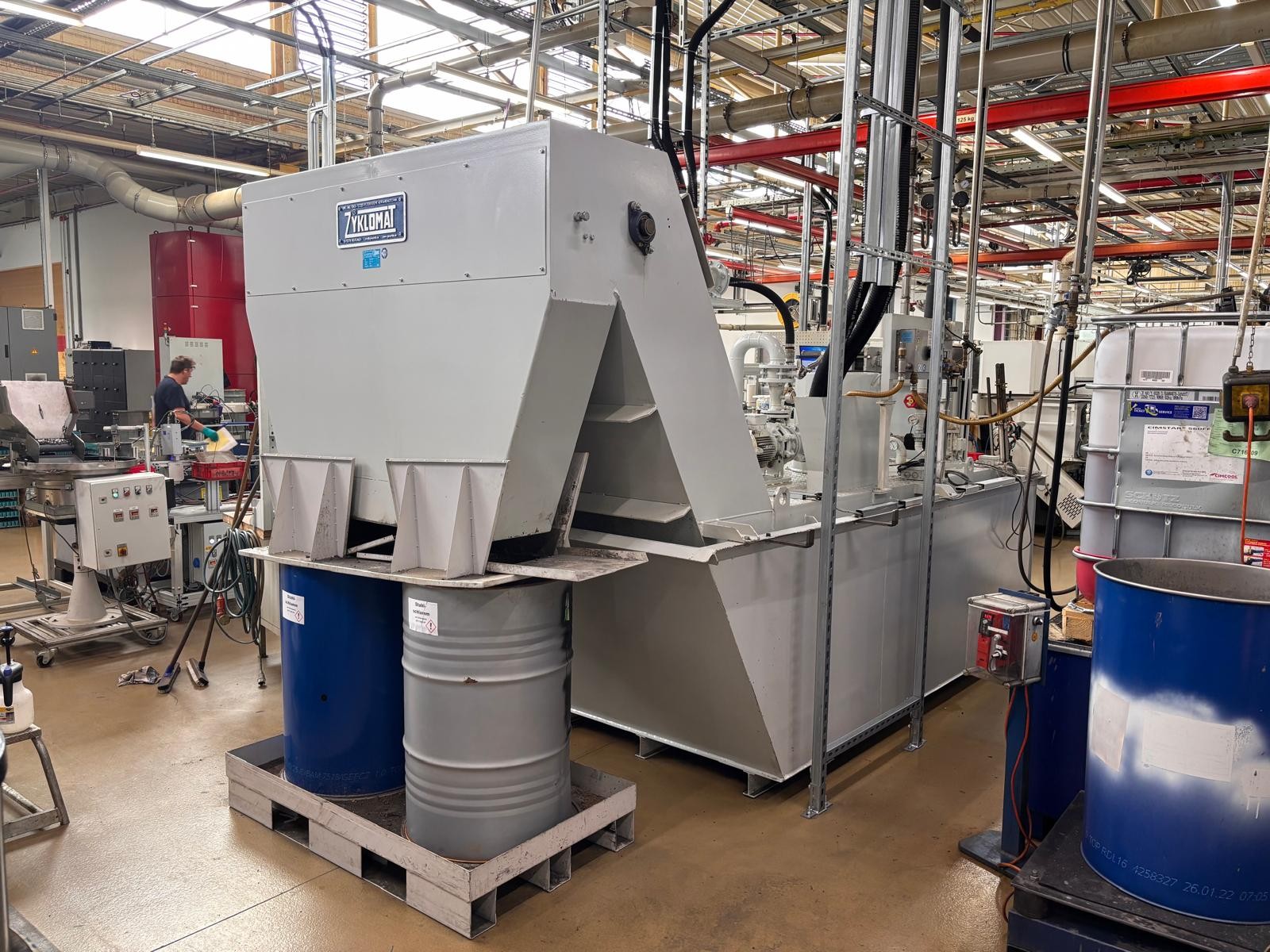

Double-Scraper Tank for Grinding Sludge Discharge
Type: KR 1.75-5.1
Total volume: approx. 5.14 m³
Max. volume: approx. 4.58 m³
Length: approx. 4,000 mm, incl. 70 mm stiffening
Width: approx. 1,890 mm, incl. 140 mm stiffening
Height: approx. 1,105 mm, incl. 100 mm base profile
Neck height: approx. 2,300 mm
Max. theoretical discharge volume: 15 kg/h

Function:
Coolant reservoir with integrated clean tank,
sedimentation and flotation tank with
fully automatic sludge discharge.

1 Helical gear motor
Voltage 400 V, 50 Hz, IP 54; serves as scraper drive
3 connection nozzles for return lines from three machines
1 clean-fluid tank, integrated into the rear of the scraper tank.
Oil-tight welded construction with internal peripheral angle-iron frame;
various Cover plates (non-walkable plates bolted to angle-iron frame),
excluding ladder, guardrails, and internal access rungs
Max. volume: approx. 0.55 m³

Reference no.: M2203
